All-In-One Shelf Edge
Digital Displays

Overview
Accessories
Specifications
Resources

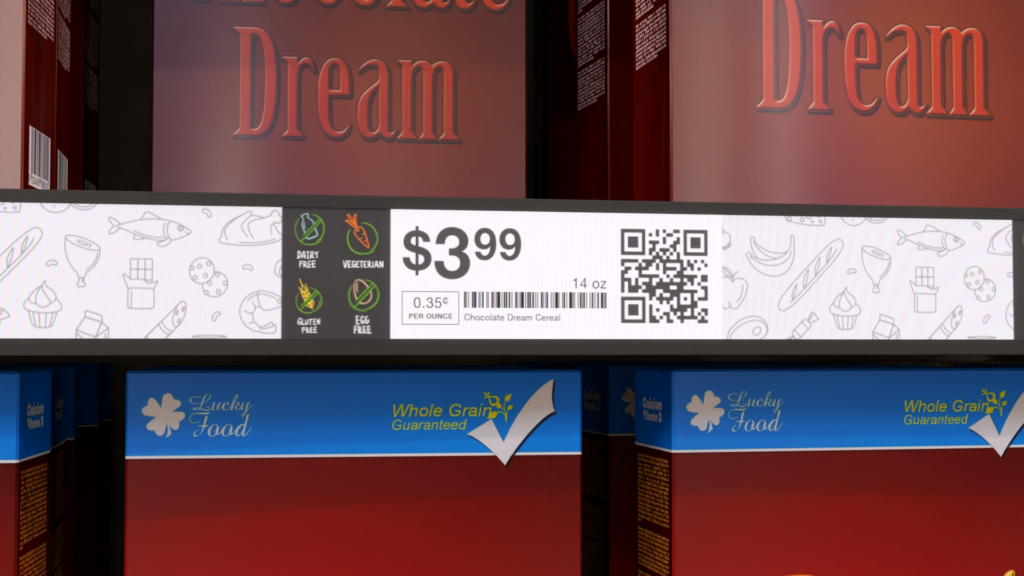

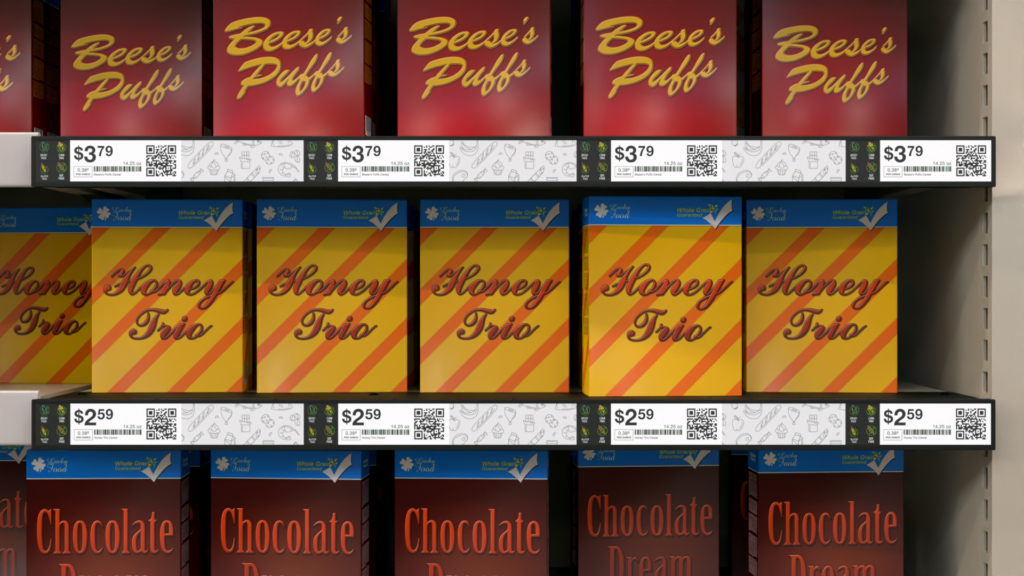

Deliver powerful, in-aisle shopping experiences and brand messaging with eye-catching clarity using LINQ all-in-one shelf edge displays. Featuring full HD or 4K resolution and up to 500 nits brightness, the displays attract attention from practically every viewing position. Designed for continuous commercial use, the displays can be powered by DC or Power over Ethernet (PoE), eliminating the need for battery power. Optional accessories include a camera, barcode scanner, or mobile sensor to deliver personalized experiences

BRILLIANT HD AND 4K DISPLAYS

High definition, transmittance, brightness and contrast ratio for stunning and clear images

Integrated Media Player

Robust content management platform for real-time content delivery, scheduling and device monitoring

Built for 24/7 Continuous Use

Engineered for commercial applications and uninterrupted playback

Available Sizes

11.6"
15.6"
18.5"
21.5"
32"
43"
55"
Shelf Edge 23.1"
Shelf Edge 37.1"
Shelf Edge 47.1"

Customer Experience Comes First

LINQ all-in-one shelf edge delivers digital signage content that captures the attention of customers and creates a memorable experience across a wide variety of use cases in retail, grocery, and additional consumer facing digital signage markets in a variety of interactive experiences.

Elevate Your Customer experience

Engineered for High Impact

LINQ shelf edge digital displays have a purpose-built proprietary design specifically tailored for digital signage applications. Featuring the high performance six-core Rockchip RK3399, the commercial tablets are engineered for continuous 24/7 commercial use. For 23.1” displays, Power over Ethernet (POE) is standard, eliminating the need for a power drop, providing cost savings and flexibility for installation.

Stunning display that demands attention

LINQ shelf edge digital displays are available in multiple configuration, functionality and size options to suit your digital signage experience needs
LINQ Pro Touch series features 10-point capacitive touch to engage the consumer with fully interactive experiences.
LINQ Pro Vue series are non-touch for passive experiences that inform and educate consumers.

End Cap Displays

LINQ shelf edge displays were specifically developed for high traffic retail environments such as grocery, convenience and retail stores.

  • Protect your investment with electro-galvanized commercial quality cold rolled steel, which prevents tampering and vandalism
  • Create sales lift through enhanced digital customer experience for end cap items

Pickup Locker

Integrate shelf edge displays into in-store pick up fixtures to streamline customer experience.

  • Offer a frictionless customer experience with the flexibility to deliver shoppers’ purchases on their terms in an automated pickup area
  • Clearly display customers’ order number or name with associated wait time, reducing friction
  • Display relevant promotions, services and ads during dwell time

Smart Shelf Pickup

LINQ shelf edge displays can be equipped with a camera, barcode scanner, or mobile sensor to deliver a more personalized shopping experience.

  • Ensure order accuracy with barcode scanning at self-service locations
  • Sensors and cameras can be deployed to provide additional order validation and security measures
  • Increase loyalty and retention with personalized content and digital interactions

Assisted Selling Kiosk (ASK)

LINQ shelf edge display is an integral part of an intelligent fixture that elevates the shopper experience with digital interactions at the point of purchase.

  • Your customers don’t have to wait for an associate to answer their questions
  • Provide a different experience depending on proximity to fixture
  • Ability to conduct real-time product comparison on price, features, availability and more

CMS

Compatible with STRATACACHE, Scala and Real Digital Media content management platforms

Memory/Storage

Standard 2 GB of RAM and 32 GB of storage with options for additional RAM and storage

Network

Features Ethernet, Wi-Fi and Bluetooth connectivity

Accessories

23.1"
37.1"
47.1

SPECIFICATIONS

Type
Standard
Plus
Power
DC 12V with retention bracket, Power over Ethernet IEEE 802.3at (25.5W) on Eth0
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel LPDDR4-3200(1600 MHz)
4 GB Dual-channel LPDDR4-3200(1600 MHz)
CPU
Six-core Rockchip RK3399ARM 64-bit processor, up to 2.0 GHzDual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
23.1”, 1920 x 158, 400 Nits Brightness, 85° Viewing Angle
Touch Panel
Available in 10-point Capacitive Touch and Non-Touch
Speakers
Two 2W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0
Antenna
One WiFi/Bluetooth
USB
One USB 2.0 Type C (Service), One USB 2.0 Micro (Accessory)
Front Camera
8 Megapixel (Optional add-on)
Other I/O
Buttons: Recovery and Reset (Pinhole)
Mount
Customized Shelf Bracket
Dimensions
Non-touch: 598.9 x 60.2 x 23.8 mm / 23.58 x 2.37 x 0.94 inTouch: 599.92 x 80.8 x 28 mm / 23.61 x 3.18 x 1.10 in
Net Weight
Non-touch: 0.95 kgs / 2.09 lbsTouch: 1.72 kgs / 3.79 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-20° - 60° C / -4° - 140° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 80%
Warranty*
1 year included, extended warranty available
Optional Upgrades**
Camera: External 8MP Camera Module
Type
Standard
Plus
Power
DC 12V with retention bracket
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel LPDDR4-3200(1600 MHz)
4 GB Dual-channel LPDDR4-3200(1600 MHz)
CPU
Six-core Rockchip RK3399 ARM 64-bit processor, up to 2.0 GHzDual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
37.1”, 3840 x 174, 500 Nits Brightness, 89° Viewing Angle
Touch Panel
Available in 10-point Capacitive Touch and Non-Touch
Speakers
Two 2W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0
Antenna
One WiFi/Bluetooth
USB
One USB 2.0 Type C (Service), One USB 2.0 Micro (Accessory)
Front Camera
8 Megapixel (Optional add-on)
Other I/O
Buttons: Recovery and Reset (Pinhole)
Mount
Customized Shelf Bracket
Dimensions
Non-touch: 961.2 x 63.7 x 32 mm / 37.84 x 2.51 x 1.26 inTouch: 971.8 x 74.3 x 38 mm / 38.26 x 2.93 x 1.50 in
Net Weight
Non-touch: 2.3 kgs / 5.07 lbsTouch: 3.25 kgs / 7.17 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-20° - 60° C / -4° - 140° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 80%
Warranty*
1 year included, extended warranty available
Optional Upgrades**
Camera: External 8MP Camera Module
Type
Standard
Plus
Power
DC 12V with retention bracket
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel LPDDR4-3200(1600 MHz)
4 GB Dual-channel LPDDR4-3200(1600 MHz)
CPU
Six-core Rockchip RK3399 ARM 64-bit processor, up to 2.0 GHzDual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
47.1", 3840 x 160, 500 Nits Brightness, 89° Viewing Angle
Touch Panel
10-point Capacitive
Speakers
Two 2W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0
Antenna
One WiFi/Bluetooth
USB
One USB 2.0 Type C (Service), One USB 2.0 Micro (Accessory)
Front Camera
8 Megapixel (Optional add-on)
Other I/O
Buttons: Recovery and Reset (Pinhole)
Mount
Customized Shelf Bracket
Dimensions
1219 x 81.42 x 36.6 mm / 47.99 x 3.21 x 1.44 in
Net Weight
5.3 kgs / 11.69 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-20° - 60° C / -4° - 140° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 80%
Warranty*
1 year included, extended warranty available
Optional Upgrades**
Camera: External 8MP Camera Module
*Extended warranties must be added at time of purchase
**4G Module and SIM card not included
