Designed and Built by Digital Signage Experts
LINQ all-in-one intelligent tablets combine powerful performance with a slim form factor to deliver powerful interactive digital experiences.
Durable and designed to withstand continuous commercial use, the all-in-one tablets are ideal for fixed applications such as digital signage, self-service kiosks and interactive guided selling solutions.
Deliver highly personalized experiences in any active, high volume environment. Equipped with a front-facing camera and integrated sensors, the screens enable consumer detection and identify demographics, allowing you to tailor digital experiences to your current audience. An integrated, robust content management platform rounds out the LINQ full solution, providing media scheduling and application, content and device management across diverse locations.
Commercial-grade reliability
Operate in rugged and demanding environments without interruption
all-in-one intelligent tablets
Combines powerful performance
computing with a slim design
computing with a slim design
Integrated hardware and software
Manage content updates and devices
across diverse locations
across diverse locations
Full Range of Sizes
11.6"
15.6"
18.5"
21.5"
32"
43"
55"
Shelf Edge 23.1"
Shelf Edge 37.1"
Shelf Edge 47.1"
Elevated Customer Experience

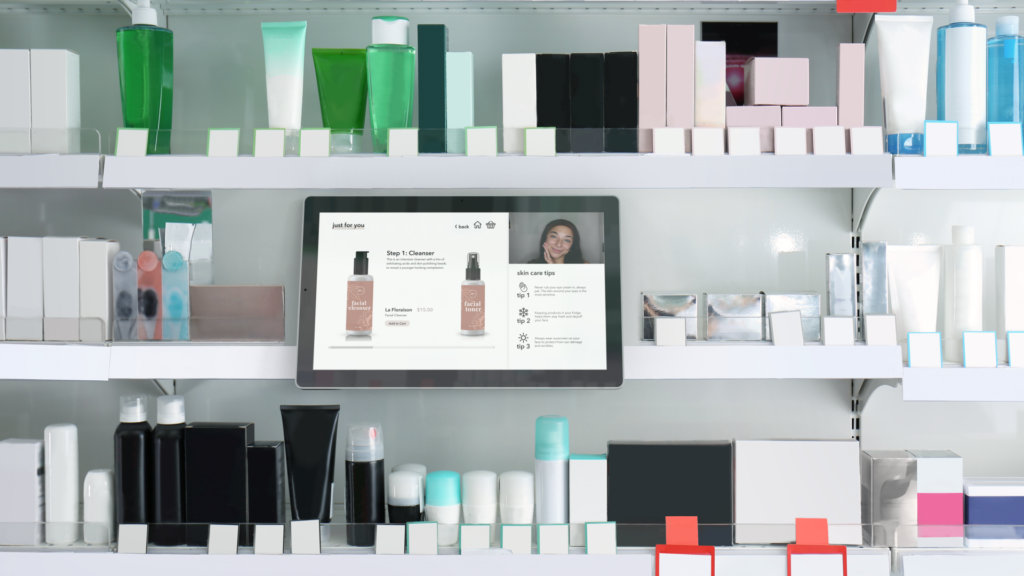

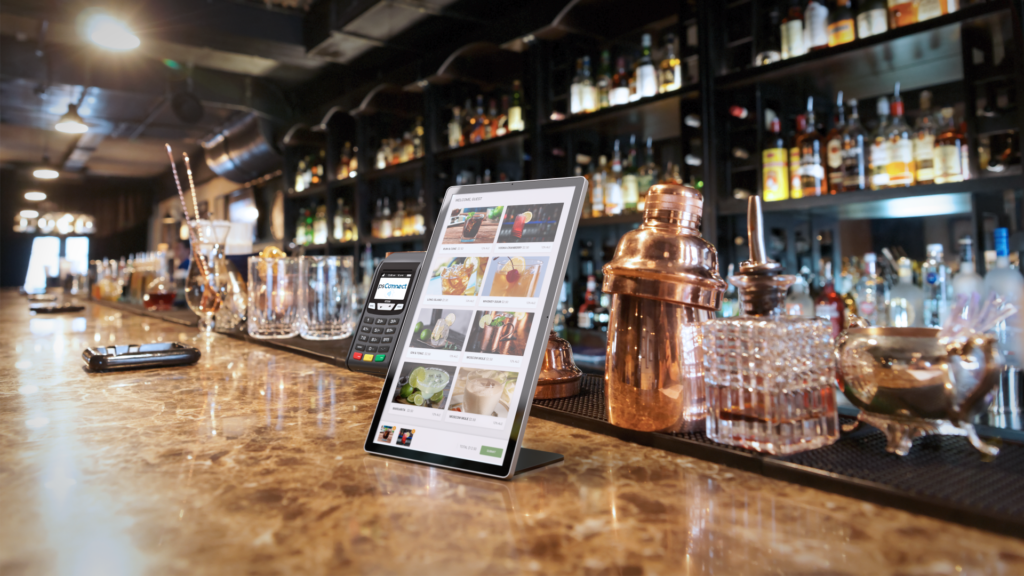

LINQ all-in-one tablets deliver digital signage content to elevate the customer experience across a wide variety of use cases in retail, quick service restaurants, banking, transportation, grocery, and additional key digital signage markets.

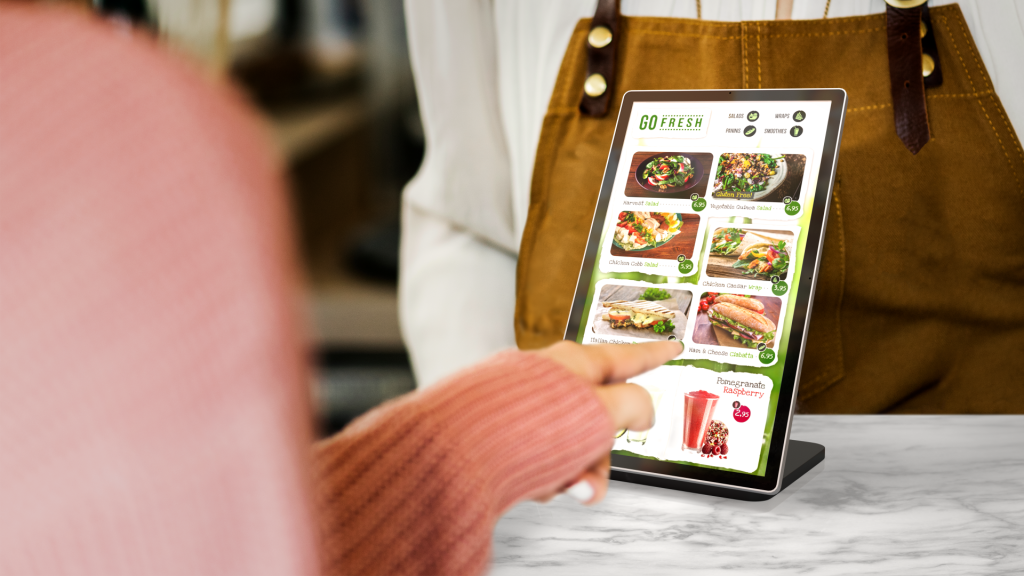

- Self-service or check-in kiosks

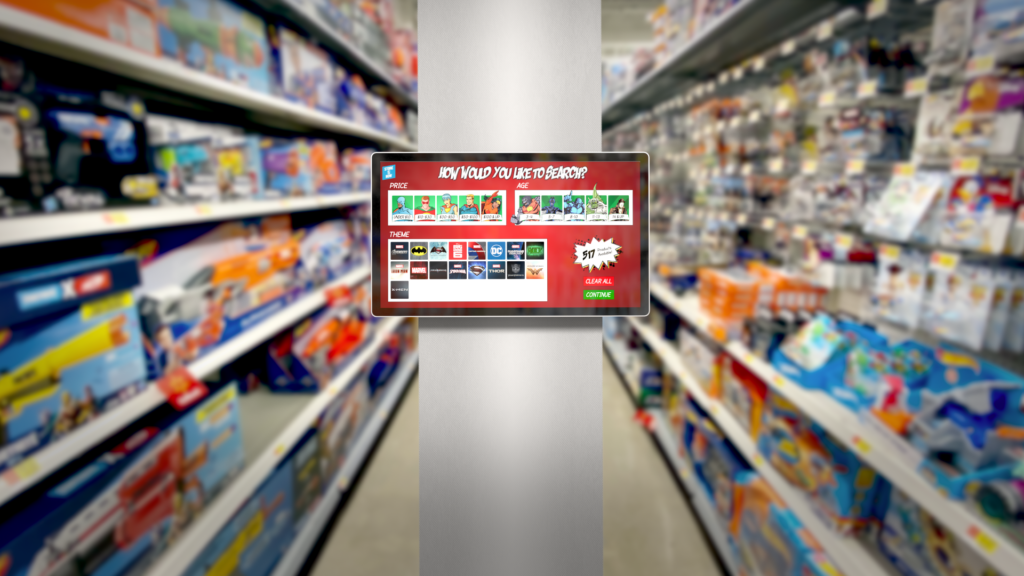

- Endless aisle
- In-store product finder
- Price checker

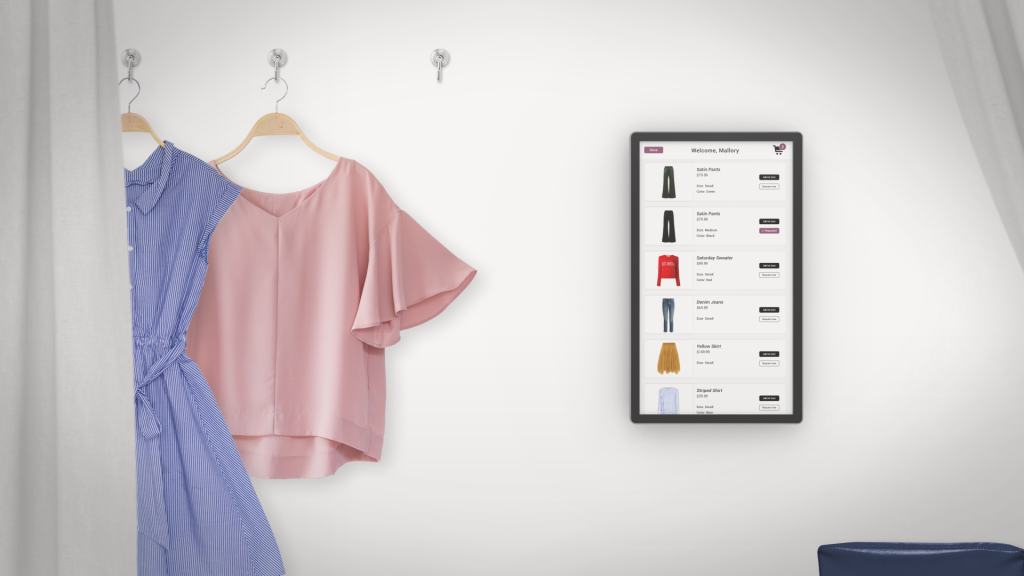

- Interactive fitting room assistant

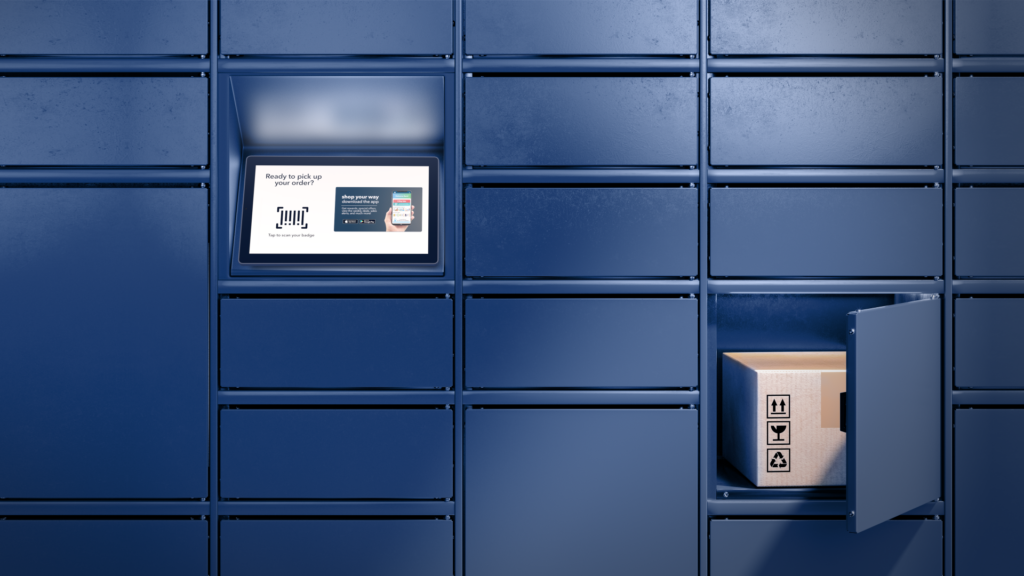

- Customer service or pick-up queue

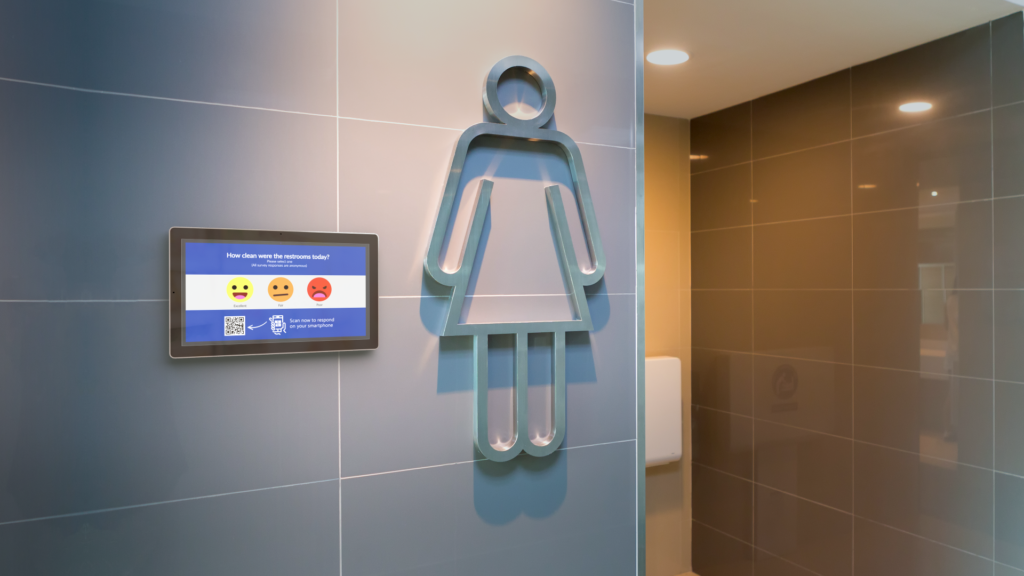

- Customer survey

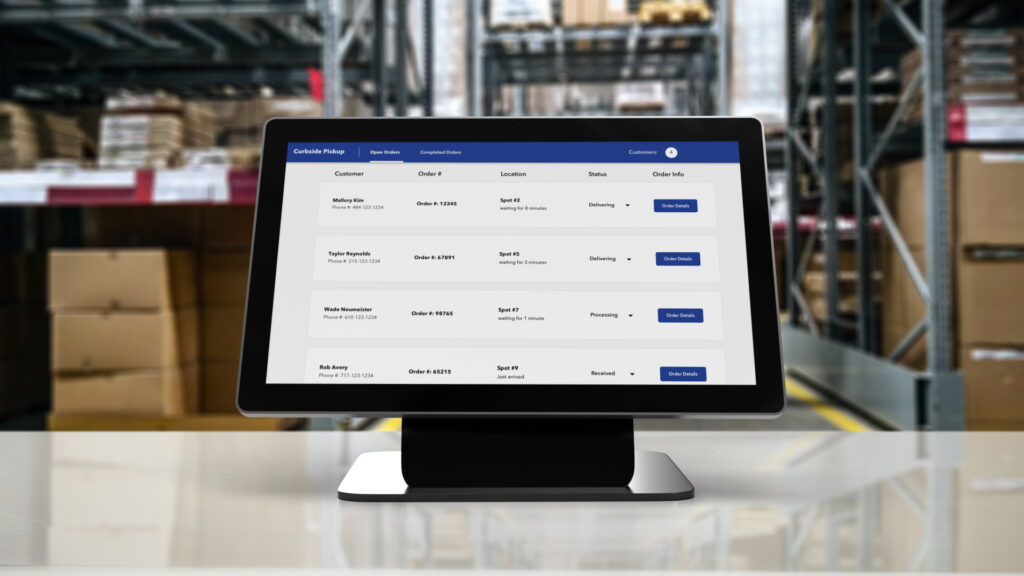

- Back of house or kitchen operations
- Wayfinding
Engineered for Reliable Digital Signage at Scale
LINQ tablets have a purpose-built proprietary design specifically tailored for digital signage applications. Featuring the high performance six-core Rockchip RK3399, the commercial tablets are engineered for continuous 24/7 commercial use, and use DC-AC power, eliminating the need for battery power. For sizes 18.5” or smaller, Power over Ethernet (POE) is standard, eliminating the need for a power drop, providing cost savings and flexibility for installation.
Flexible Configuration to Fit your Needs
LINQ tablets are available in multiple configuration, functionality and size
options to suit your digital signage experience needs
options to suit your digital signage experience needs
LINQ Pro Touch series features 10-point capacitive touch to engage the consumer with fully interactive experiences.
LINQ Pro Vue series are non-touch for passive experiences that inform and educate consumers.
CMS
Compatible with content management platforms across the STRATACACHE family of companies, including Scala, X2O Media and Real Digital Media.
Memory/Storage
Standard configuration offers 2 GB of RAM and 32 GB of storage. A plus configuration offers 4 GB of RAM and 64 GB of storage with the option to upgrade to 128 GB of storage.
Network
Features Ethernet, Wi-Fi and Bluetooth connectivity with the option to also add 4G LTE connectivity.
Accessories
A variety of input and output options provide the versatility to connect multiple accessories and peripherals to customize and expand your solution for integrating functionality such as payment processing, barcode scanning, and Near-Field Communication (NFC).
11.6"
15.6"
18.5"
21.5"
32"
43"
55"
SPECIFICATIONS
Type
Standard
Plus
Model Description
LINQ 11.6" Pro Touch Series
Power
Input: 100-240V~50/60Hz AC, Output: 12V DC Screw Lock, Power over Ethernet IEEE 802.3at (25.5W) on Eth0
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
11.6" IPS, 1920 x 1080, 400 Nits Brightness, 85° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Two 2W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 75 x 75 mm
Dimensions
296.3 x 179.3 x 30.5 mm / 11.67 x 7.06 x 1.20 in
Net Weight
1.67 kgs / 3.68 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
Type
Standard
Plus
Model Description
LINQ 15.6" Pro Touch Series
Power
Input: 100-240V~50/60Hz AC, Output: 12V DC Screw Lock, Power over Ethernet IEEE 802.3at (25.5W) on Eth0
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
15.6" IPS, 1920 x 1080, 500 Nits Brightness, 85° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 input, one HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Two 3W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
One UART Serial
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 100 x 100 mm
Dimensions
396.7 x 248.8 x 35.5 mm / 15.62 x 9.80 x 1.40 in
Net Weight
3.33 kgs / 7.34 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
Type
Standard
Plus
Model Description
LINQ 18.5” Pro Touch Series
Power
Input: 100-240V~50/60Hz AC, Output: 12V DC Screw Lock, Power over Ethernet IEEE 802.3at (25.5W) on Eth0
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
18.5" IPS, 1920 x 1080, 300 Nits Brightness, 88° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 input, one HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Two 3W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
One UART Serial
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 100 x 100 mm
Dimensions
463.1 x 287.4 x 37 mm / 18.23 x 11.32 x 1.46 in
Net Weight
4.5 kgs / 9.92 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
Type
Standard
Plus
Model Description
LINQ 21.5” Pro Touch Series
Power
100-240V~50/60Hz AC, Output: 12V DC Screw Lock
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
21.5" IPS, 1920 x 1080, 500 Nits Brightness, 89° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 input, one HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Two 5W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
One UART Serial
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 100 x 100 mm and VESA 75 x 75 mm
Dimensions
532.1 x 328.6 x 36.7 mm / 20.95 x 12.94 x 1.45 in
Net Weight
5.94 kgs / 13.10 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
Type
Standard
Plus
Model Description
LINQ 32” Pro Touch Series
Power
100-240V~50/60Hz AC, Output: 12V DC Screw Lock
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
32" IPS, 1920 x 1080, 500 Nits Brightness, 89° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 input, one HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Four 5W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
One UART Serial
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 200 x 200 mm and VESA 200 x 100 mm
Dimensions
750 x 444 x 40 mm / 29.53 x 17.48 x 1.58 in
Net Weight
12.5 kgs / 27.56 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
Type
Standard
Plus
Model Description
LINQ 43” Pro Touch Series
Power
100-240V~50/60Hz AC, Output: 12V DC Screw Lock
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
43" IPS, 1920 x 1080, 450 Nits Brightness, 89° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 input, one HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Four 5W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
One UART Serial
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 400 x 200 mm
Dimensions
1005.6 x 599.92 x 63.5 mm / 39.59 x 23.61 x 2.5 in
Net Weight
24.1 kgs / 53.13 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
Type
Standard
Plus
Model Description

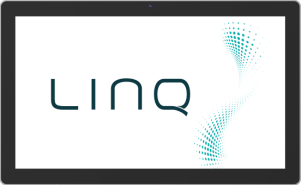

LINQ 55” Pro Touch Series
Power
100-240V~50/60Hz AC, Output: 12V DC Screw Lock
Operating System
Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
55" IPS, 1920 x 1080, 450 Nits Brightness, 89° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 input, one HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Four 5W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
One UART Serial
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 400 x 200 mm
Dimensions
1278 x 754 x 62.5 mm / 50.32 x 29.69 x 2.46 in
Net Weight
38.6 kgs / 85.10 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
*Extended warranties must be added at time of purchase
**4G Module and SIM card not included
**4G Module and SIM card not included
RESOURCES
LINQ 11.6" Pro Touch
Click to download the fileLINQ 15.6" Pro Touch
Click to download the fileLINQ 18.5" Pro Touch
Click to download the fileLINQ 21.5" Pro Touch
Click to download the fileLINQ 32" Pro Touch
Click to download the fileLINQ 43" Pro Touch
Click to download the fileLINQ 55" Pro Touch
Click to download the file
